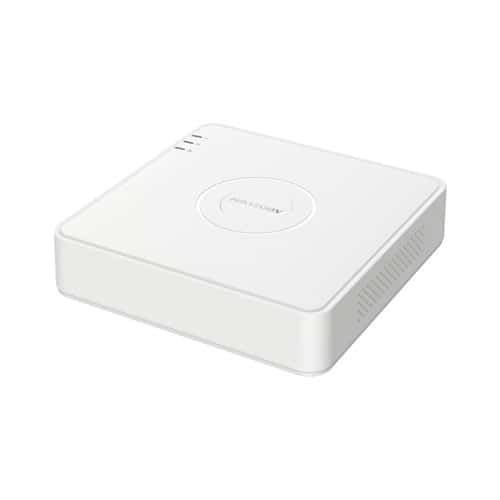

HIKVISION DS-7104HGHI-M1_STD_C

In Stock
Category:
  • Deep learning based human and vehicle targets classification of Motion Detection 2.0
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  • Audio via coaxial cable
  • Up to 5-ch IP camera inputs (up to 2 MP)
  • Up to 1080p Lite@15 fps encoding capability
  • Max. 1200 m for 720p HDTVI signal

Description

Category Specifications
Motion Detection 2.0
  • Human/Vehicle Analysis
  • Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
  • Quick search by object or event type is supported;
Recording
  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution:
    • For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
    • For 720p stream access: 720p/WD1/4CIF/VGA/CIF
    • For SD stream access: WD1/4CIF/VGA/CIF
  • Frame Rate:
    • Main stream:
      • For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF @ 25 fps(P)/30 fps (N)
      • For 720p stream access: 720p/WD1/4CIF/VGA/CIF @ 25fps (P)/30 fps (N)
      • For SD stream access: WD1/4CIF/VGA/CIF @ 25 fps (P)/30 fps (N)
    • Sub-stream: 4CIF @ 15fps; CIF/QVGA @ 25 fps (P)/30 fps (N)
  • Video Bitrate: 32 Kbps to 4 Mbps
  • Stream Type: Video, Video & Audio
IP Video Input
  • 1-ch (up to 5-ch)
  • Up to 1080p resolution
  • Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
  • 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input: 1080p25, 1080p30, 720p25, 720p30
  • AHD Input: 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
  • CVBS Input: Support
HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode HDMI/VGA simultaneous output
Audio Input 1-ch RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
Audio Output 1-ch RCA (Linear, 1 KΩ)
Two-Way Audio Reuse the first audio input
Synchronous Playback 4-ch
Network
  • Total Bandwidth: 64 Mbps
  • Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Remote Connection: 32
  • Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
  • SATA: 1 SATA interface, Up to 4 TB capacity for each disk
  • USB Interface: Rear panel: 2 × USB 2.0
  • Alarm In/Out: N/A
General
  • Power Supply: 12 VDC, 1.5 A
  • Consumption: ≤ 16 W (without HDD)
  • Working Temperature: -10 °C to 55 °C (14 °F to +31 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W × D × H): 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
  • Weight: ≤ 0.8 kg (without HDD, 1.8 lb.)
