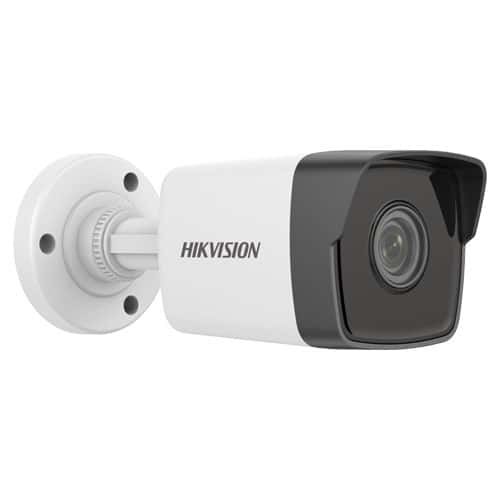

Hikvision DS-2CD1023G0E-I
In Stock
- 2 MP Fixed Bullet Network Camera Features
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to DWDR technology
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range
Description
Category | Specification |
---|---|
Camera | |
Image Sensor | 1/2.7″ Progressive Scan CMOS |
Max. Resolution | 1920 × 1080 |
Min. Illumination | Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
Shutter Time | 1/3 s to 1/100,000 s |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360° |
Lens | |
Focal Length & FOV | 2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2° 4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6° |
Lens Mount | M12 |
Iris Type | Fixed |
Aperture | F2.0 |
Illuminator | |
Supplement Light Type | IR |
Supplement Light Range | Up to 30 m |
Smart Supplement Light | Yes |
IR Wavelength | 850 nm |
Video | |
Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
Video Compression | Main Stream: H.265/H.264/H.264+/H.265+ Sub-Stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | Baseline Profile/Main Profile/High Profile |
H.265 Type | Main Profile |
Region Of Interest (ROI) | 1 fixed region for main stream |
Network | |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
Simultaneous Live View | Up to 6 channels |
API | Open Network Video Interface, ISAPI |
User/Host | Up to 32 users. 3 levels: administrator, operator and user |
Client | iVMS-4200, Hik-Connect |
Web Browser | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
Image | |
Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
Day/Night Switch | Day, Night, Auto, Schedule |
Wide Dynamic Range (WDR) | Digital WDR |
SNR | ≥ 52 dB |
Image Enhancement | BLC, 3D DNR |
Interface | |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
Event | |
Basic Event | Motion detection, video tampering alarm, exception |
Linkage | Upload to FTP, notify surveillance center, send email |
General | |
Power | 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
Dimension | 177.6 mm × 66.2 mm × 67.8 mm (7.0″ × 2.6″ × 2.7″) |
Package Dimension | 216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″) |
Weight | Approx. 270 g (0.6 lb.) |
With Package Weight | Approx. 490 g (1.1 lb.) |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
Language | English, Ukrainian |
General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
Approval | |
EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Protection | IP67 (IEC 60529-2013) |
Additional information
Brand | Hikvision |
---|
